Model: 1800

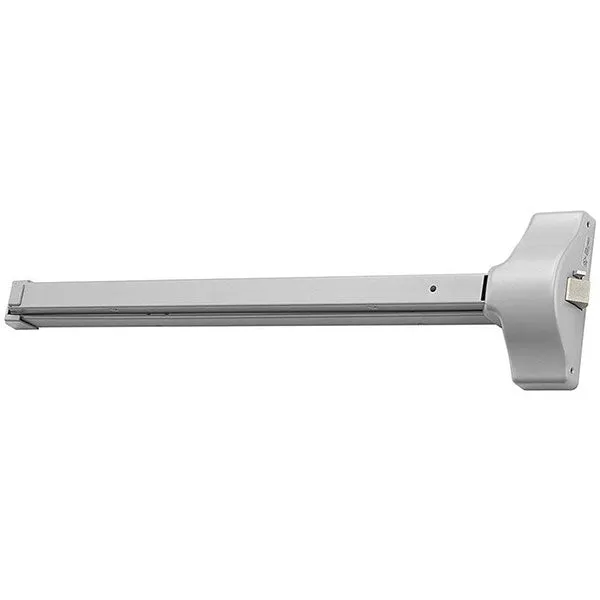

Yale 1800 Series Flatbar Rim Exit Device, Exit Only
Yale® 1800 series exit devices are the ideal choice for economy commercial applications where consistent quality, ease of use, and installation are required. The 1800 devices are certified ANSI/BHMAA156.3, Grade-1, and their performance, construction, and versatility make them perfect for a variety of facilities. Ideal for back of the house where function and code compliance are the requirement at an economical price.
- Exit Only (Yale Exit Device Trim Sold Separately)
- UL/cUL Listed: FVSR/FVSR7 – Panic hardware
- Designed for wide stile doors
- Non-handed for easy installation
- ISO 9001: Designed and manufactured under a certified ISO 9001 quality system
| Brand |
Yale |
|---|---|
| Finishes |
689 Aluminum, 695 Dark Bronze |
| Length |
36" (for 30" to 36" Doors), 48" (for 42" to 48" Doors) |
| ANSI/BHMA Standard |
Certified ANSI/BHMA A156.3, Grade 1 |
| Usage |
Medium Duty |
| Stile Type |
Wide (Standard) |
| Fire Rating |
None |
| Handing |
Non Handed – Completely Reversible |
| Minimum Stile Width |
4-1/2" |
| Projections |
2-1/2" active, 1-3/4" dogged |
| Latchbolt |
3/4" deadlocking stainless steel pullman-type |
| Strike |
757F, 793 optional (double door application, panic only) |
| Dogging Feature |
Half turn hex dogging standard |
| Fasteners |
Machine screws and wood door fasteners standard for panic hardware. Sex nuts and bolts supplied standard for fire exit hardware |
| Door Applications |
1-3/4" Metal, wood or composite doors |
| Warranty |
1 Year |
