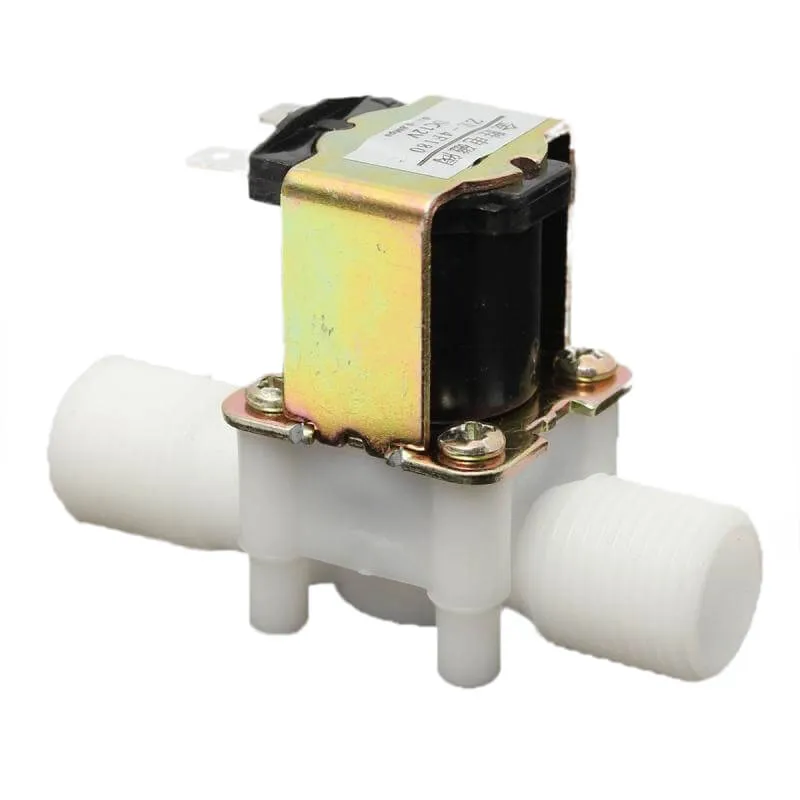

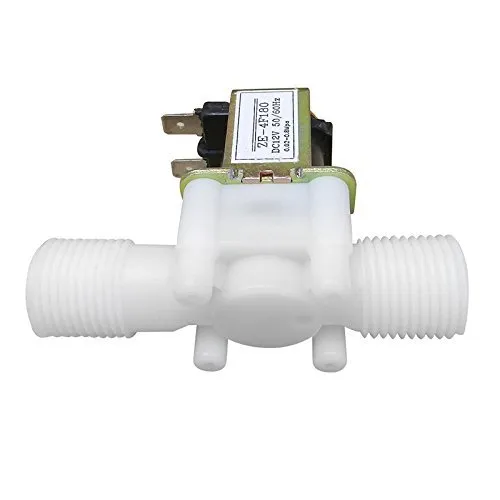

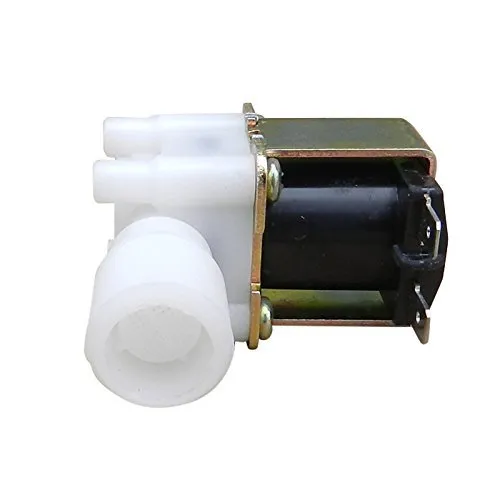

DC 12Volt Water Air Inlet Flow Switch 0.5inch
- A solenoid valve is an electromechanically operated valve. The valve is controlled by an electric current through a solenoid: in the case of a two-port valve the flow is switched on or off; in the case of a three-port valve, the outflow is switched between the two outlet ports.
- Inlet and outlet: hose barbs for 1/2" (outer diameter) hose
- Pressure: 0.02- 0.8Mpa
- Max fluid temperature: 100°C
- Operation mode: normally closed
- Valve type: diaphragm (operated by Servo)
- Usage: water and low viscosity fluids
- Product Dimension: 78mm x 60mm
- The inner diameter: 13.5mm
- Four external diameters of thread: 20mm
- A solenoid valve is an electromechanically operated valve. The valve is controlled by an electric current through a solenoid: in the case of a two-port valve the flow is switched on or off; in the case of a three-port valve, the outflow is switched between the two outlet ports.
